TC150 (Refurbished)
Conveyorized Oven
The TC-150 Conveyorized Oven is the most flexible conveyorized oven available for tackdrying or final curing of solder mask and legend ink. Conveyorized ovens are used most effectively to improve productivity, decrease variability, and increase yield in solder mask and legend ink processes. The TC-150 has a heated chamber of 3.0 meters using a variety of racks with different pitches and spacing available separately. Air distribution in the TC-150 is extremely even throughout the oven, achieving 4°C (TIR) temperature distribution across the panel at tack-dry temperatures and 6°C (TIR) at final cure temperatures.
Click Here to Email Us Now
or Call Us at 775-885-9959 Ext.2 For Any Question
Product Information
- Year of Manufacture: 1998
- Certified by Taiyo Circuit Automation: 2023
- Current Location: Carson City, NV, USA
- Warranty: 3 months
Detailed Product Feature
- Active controls for uniform airflow
- Lateral mixing for no cold spots
- Unmatched temperature profiles within +/-2 degree Celsius
- Rack transport system

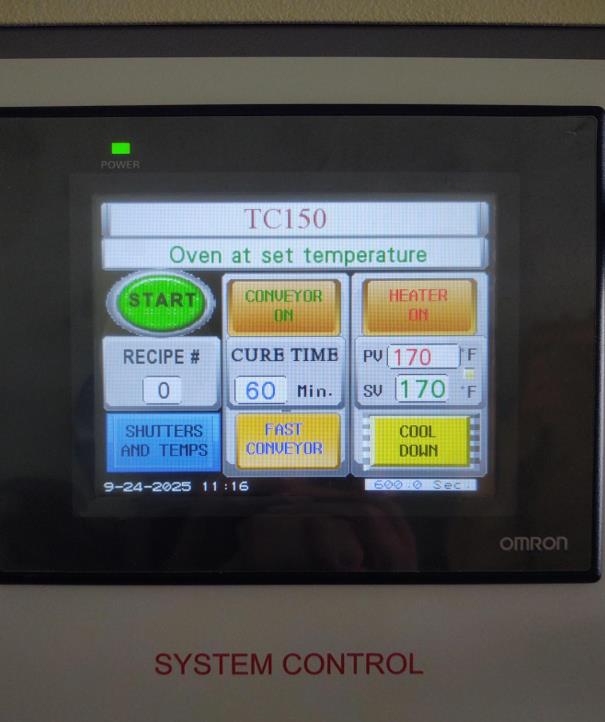

- Alarm annunciator panel and LED interface
- Chart recorder
- PLC controlled
Specifications
| Specifications | TC-150 |
|---|---|
| Transport | Rack |
| Throughput – Panels/hour + | 160 |
| Length of Heated Zone, Meters | 3 |
| Number of Heated Zone | 1 |
| Maximum Temperature | 375°F – 190°C |
| Maximum Panel Dimension (Widthwise) | 660mm X 760mm (26″ X 30″) |
| Panel Thickness | Racking Options from 0.004″ to 0.500″ (0.010mm to 12.7mm) |
| Heater Capacity, KW | 49kW |
| Heating Elements, Quantity | Incoloy / Six |
| Utilities | |
| Electrical Service: 480 V/30/60Hz | 90A |
| Electrical Service: 380-400-415V/30/50Hz | 125A |
| Minimum Exhaust Requirements: Cfm | 800 |
| Minimum Exhaust Requirements: m3/hr | 1359 |
| Number of Exhaust Ducts | Three |
| Pneumatic | None Required |
| Dimensions | |
| A = Length | 200″ (5080mm) |
| B = Height | 97.5″ (2477mm) |
| C = Width | 60.5″ (1537mm) |
| D = Minimum Pass Height | 28.5″ (724mm) |
| + Throughput based on 60 minute cycle @ 0.75″ (19mm) pitch |
